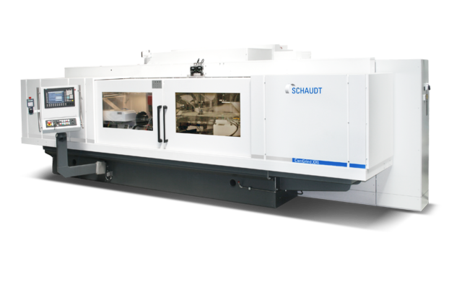

CamGrind_XXL_Grinding Machine .png
CamGrind_XXL_Grinding Machine .png

CamGrind XXL

0.00

The CamGrind XXL ist the ideal production grinding machine for the complete machining of large, heavy shafts up to 3,000 mm in length. This powerful machine enables the complete machining of concave and convex contours in a single clamping.

Machine description:

  • Large table slide machine for for cylindrical and noncircular grinding of shaft-type workpieces up to 1.500/3.000 mm in length, height of centres 180 mm
  • Modular single-slide machine
  • Complete machining in a single clamping
  • Simple programming of cam profiles with WOP-S software
  • Machine bed with optimal damping characteristics
  • Swivel-in second grinding spindle (optional)
  • DIATRONIC absolute measuring head

Technical Data:

  • Grinding length mm 1500/3000
  • Height of centres mm 300
  • Grinding wheel diameter, max.   mm 400
  • Grinding wheel width, max. mm 70
  • Grinding wheel driving power, max.     kW  40
  • Workpiece weight, max. kg 130
  • Sinumerik 840 D control system

Variants

Swivel-in grinding spindle (2 grinding spindles)

Diatronic absolute measuring head
